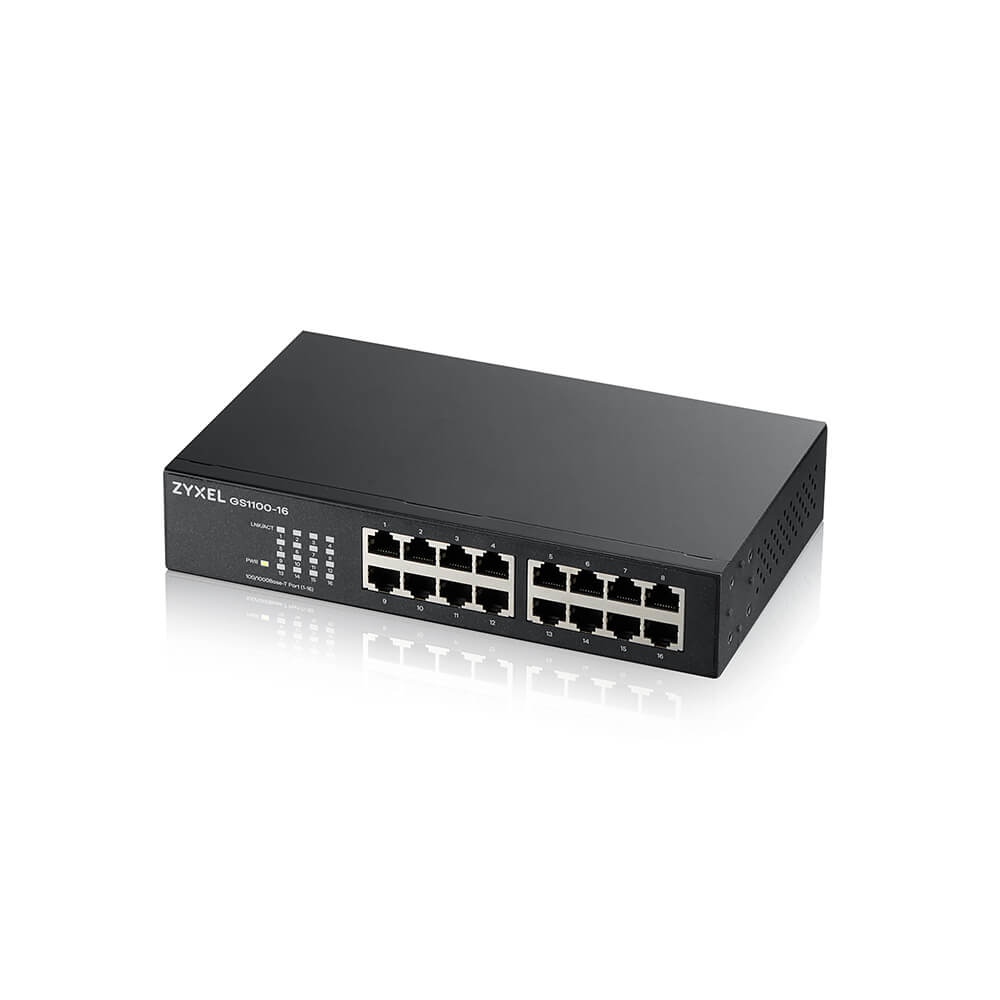

Zyxel GS1100-16. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. Wall mountable, Rack mounting
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
| Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
N |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Active link detection |
Y |
| Data transmission |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| MAC address table |
8000 entries |
| Jumbo frames support |
Y |
| Jumbo frames |
9216 |
| Packet buffer memory |
0.5 MB |
| Design |
| Rack mounting |
Y |
| LED indicators |
Activity, Link, Power |
| Wall mountable |
Y |
| Electromagnetic compatibility |
CE, FCC, RCM, ICES-003, BSMI |
| Certification |
LVD, BSMI
RoHS, REACH |
| Performance |
| Fanless |
Y |
| Mean time between failures (MTBF) |
1156942 h |
| Power |
| Power supply included |
Y |
| Number of power supply units |
1 |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
10 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 95% |
| Heat dissipation |
32.86 BTU/h |
| Weight & dimensions |
| Width |
215 mm |
| Depth |
133 mm |
| Height |
42 mm |
| Weight |
19.8 kg |
| Packaging data |
| Cables included |
AC |
| Package type |
Box |
| Rack mount kit |
Y |
