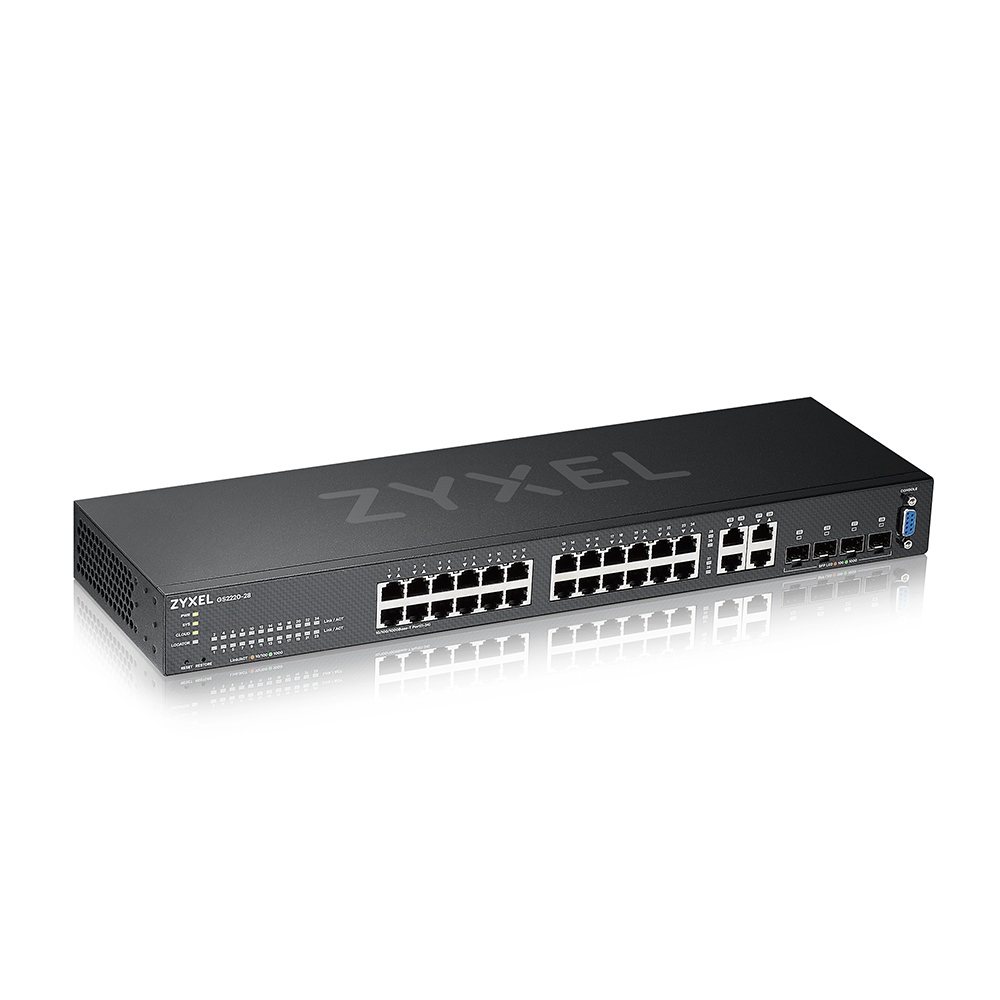

Zyxel GS2220-28-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Rack mounting
| Management features |
| Switch type |
Managed |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Configuring Location Settings (CLI) |
Y |
| System event log |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
4 |
| Network |
| Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-TX,1000BASE-T |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Port-based VLAN,Private VLAN,Protocol-based VLAN,Voice VLAN |
| Data transmission |
| Switching capacity |
56 Gbit/s |
| Forwarding rate |
42 Mpps |
| MAC address table |
16000 entries |
| Packet buffer memory |
1.5 MB |
| Security |
| DHCP features |
DHCP client,DHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 relay |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Security algorithms |
SNMP,SNMPv2,SNMPv3,SSH-2,SSL/TLS |
| MAC address filtering |
Y |
| Authentication |
Guest VLAN, MAC-based authentication |
| Authentication type |
IEEE 802.1x,RADIUS |
| Multicast features |
| Multicast support |
Y |
| Design |
| Rack mounting |
Y |
| Product colour |
Black |
| Certification |
LVD, BSMI
FCC 15 A, CE EMC A, BSMI ENC
RoHS A |
| Performance |
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Firmware upgradeable |
Y |
| Fanless |
Y |
| Mean time between failures (MTBF) |
989157 h |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
22.5 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage relative humidity (H-H) |
10 - 95% |
| Heat dissipation |
76.725 BTU/h |
| Weight & dimensions |
| Width |
441 mm |
| Depth |
131 mm |
| Height |
44 mm |
| Weight |
2.2 kg |
| Packaging data |
| Cables included |
AC |
| Package width |
558 mm |
| Package depth |
214 mm |
| Package height |
79 mm |
| Package weight |
2.91 kg |
