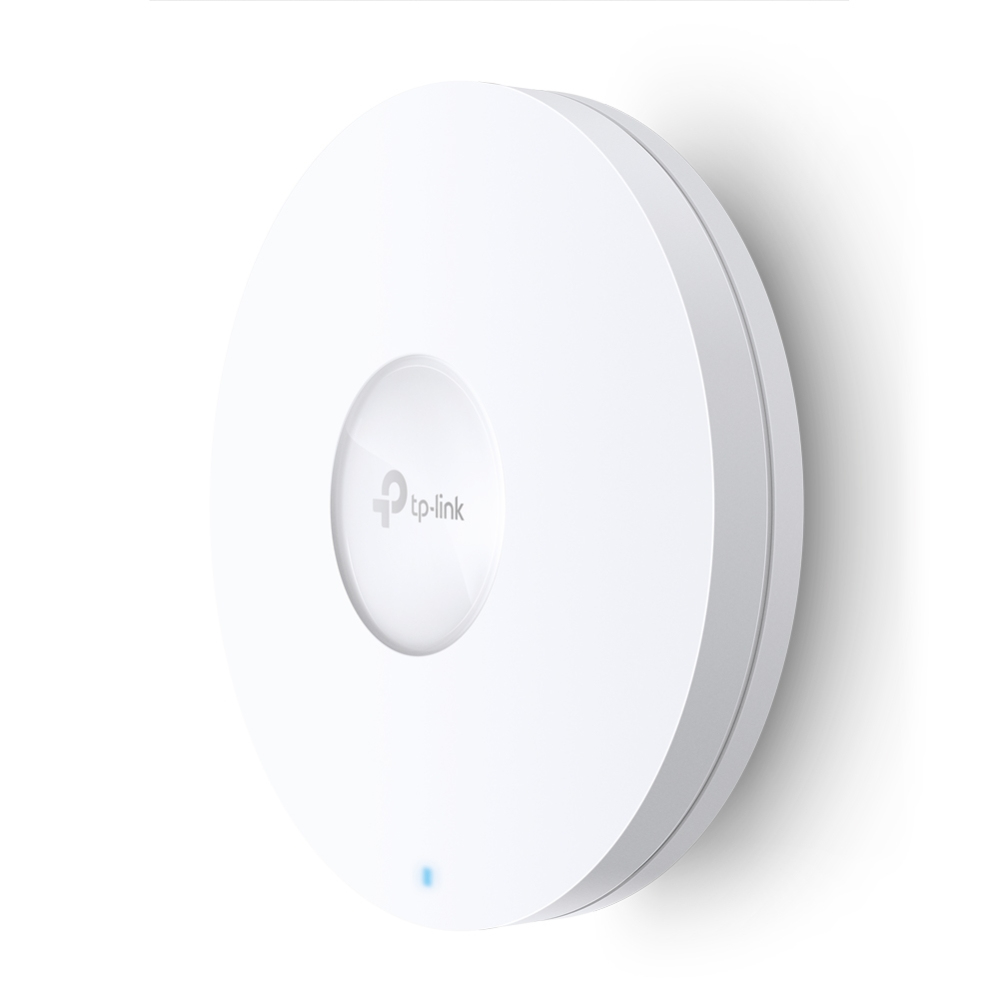

TP-Link AX1800 Wireless Dual Band Ceiling Mount Access Point. Maximum data transfer rate: 1201 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK, Service Set Identifier (SSID) features: Multiple SSIDs. Power over Ethernet (PoE) type supported: Active PoE, Passive PoE, Output voltage: 12 V, Output current: 1.5 A. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 6 dBi
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| 6 GHz |
N |
| Maximum data transfer rate |
1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
| Ethernet LAN data rates |
1000 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Automatic channel selection |
Y |
| Automatic channel scanning |
Y |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Modulation |
1024-QAM, OFDM |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| VLAN support |
Y |
| Virtual LAN features |
VLAN mapping |
| Rate limiting |
Y |
| Wireless isolation |
Y |
| Band steering |
Y |
| Airtime Fairness (ATF) |
Y |
| Quality of Service (QoS) support |
Y |
| Transmitting power (CE) |
20/23 dBm |
| Transmitting power (FCC) |
23 dBm |
| Security |
| Security algorithms |
SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering |
Y |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Number of SSID supported |
16 |
| Remote Authentication Dial-In User Service (RADIUS) |
Y |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
| Firmware upgradeable |
Y |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Y |
| Power |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
12 W |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Y |
| Certification |
CE, FCC, RoHS |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna gain level (max) |
6 dBi |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Weight & dimensions |
| Width |
160 mm |
| Depth |
160 mm |
| Height |
33 mm |
| Packaging content |
| Number of products included |
1 pc(s) |
| AC adapter included |
Y |
| Quick start guide |
Y |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
