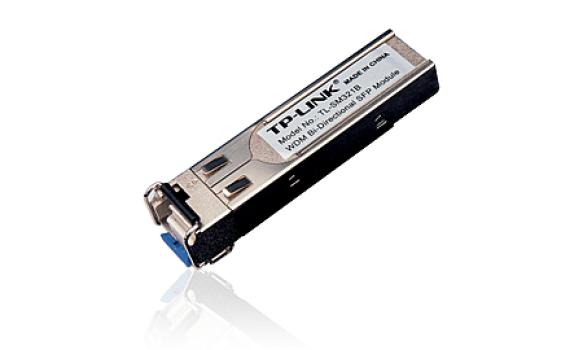

TP-LINK 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Certification: FCC, CE. Input voltage: 3.3 V. Width: 55.4 mm, Depth: 12.9 mm, Height: 12.9 mm. Package width: 122.5 mm, Package depth: 81.5 mm, Package height: 38.5 mm
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Y |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Maximum transfer distance |
10000 m |
| Tx wavelength (max) |
1550 nm |
| Rx wavelength (max) |
1310 nm |
| Networking standards |
IEEE 802.3z |
| Features |
| Plug and Play |
Y |
| Certification |
FCC, CE |
| Power |
| Input voltage |
3.3 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
55.4 mm |
| Depth |
12.9 mm |
| Height |
12.9 mm |
| Packaging data |
| Package width |
122.5 mm |
| Package depth |
81.5 mm |
| Package height |
38.5 mm |
| Package weight |
60 g |
| .N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.. |
