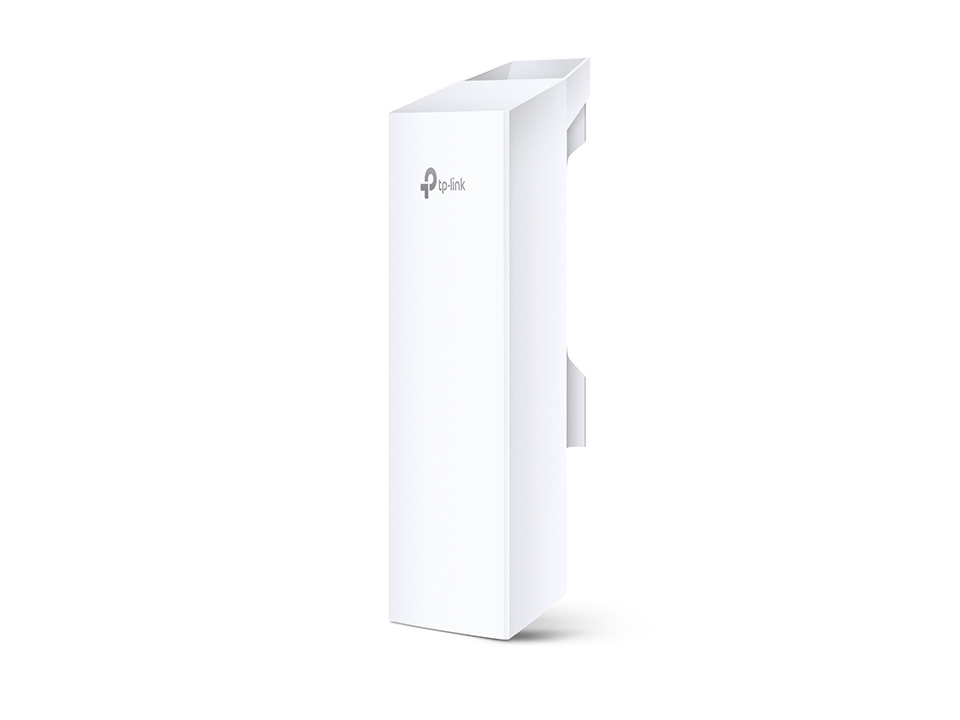

TP-LINK CPE210. Maximum data transfer rate: 300 Mbit/s, Frequency band: 2.4 - 2.483 GHz, Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n. Security algorithms: AES,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK. Management platform: Pharos Control. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Output voltage: 24 V. Placement: Pole, Product colour: White, International Protection (IP) code: IPX5
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| Maximum data transfer rate |
300 Mbit/s |
| Frequency band |
2.4 - 2.483 GHz |
| Networking standards |
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Automatic channel selection |
Y |
| Automatic channel scanning |
Y |
| MIMO |
Y |
| VLAN support |
Y |
| Dynamic Frequency Selection (DFS) |
Y |
| Maximum outdoor range |
5000 m |
| Security |
| Security algorithms |
AES,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering |
Y |
| IGMP snooping |
Y |
| Management features |
| Web-based management |
Y |
| Management platform |
Pharos Control |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Power over Ethernet (PoE) |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
24 V |
| Output current |
0.25 A |
| Design |
| Placement |
Pole |
| Product colour |
White |
| International Protection (IP) code |
IPX5 |
| Reset button |
Y |
| LED indicators |
Status |
| Certification |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
CE, FCC, RoHS |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Directional |
| Antenna gain level (max) |
9 dBi |
| Polarization |
Dual polarization |
| Performance |
| Built-in processor |
Y |
| Processor model |
Qualcomm Atheros |
| Processor frequency |
560 MHz |
| Processor architecture |
MIPS 74Kc |
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
224 mm |
| Depth |
79 mm |
| Height |
60 mm |
| Packaging data |
| Number of products included |
1 pc(s) |
| Cables included |
AC |
| Mounting kit |
Y |
