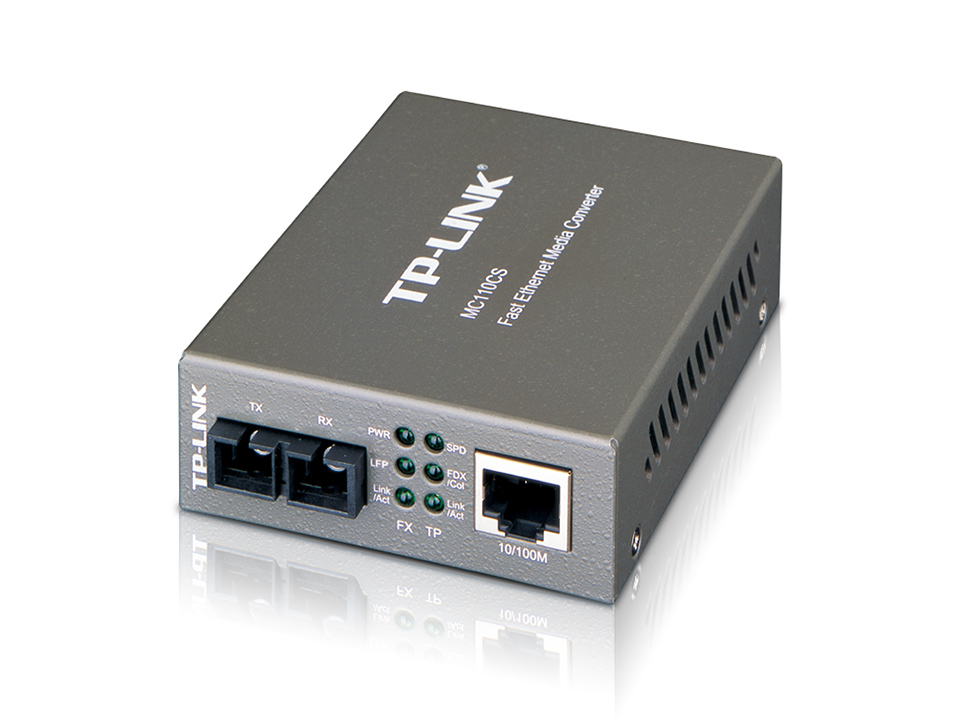

TP-Link 10/100Mbps Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. LED indicators: Power, Speed, Product colour: Black, Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power consumption (max): 1.52 W
| Network |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
1000 Mbit/s |
| Auto MDI/MDI-X |
Y |
| Cabling technology |
UTP 3, 4, 5e, 5 |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC |
| Performance |
| Maximum transfer distance |
20000 m |
| Wavelength |
1310 nm |
| Design |
| Internal |
N |
| LED indicators |
Power, Speed |
| Product colour |
Black |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Certification |
FCC, CE |
| Power |
| Power consumption (max) |
1.52 W |
| Weight & dimensions |
| Width |
94.5 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging data |
| Package width |
204 mm |
| Package depth |
165 mm |
| Package height |
65 mm |
| Other features |
| Dimensions (WxDxH) |
94.5 x 73 x 27 mm |
| I/O ports |
1x 100M SC
1x 100M RJ45 |
| Full duplex |
Y |
