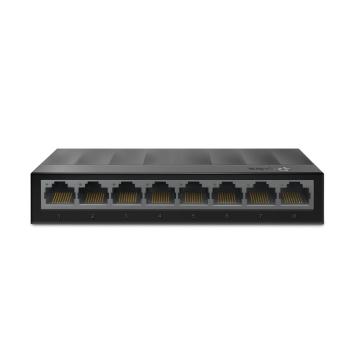

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
N |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Data transmission |
| Switching capacity |
16 Gbit/s |
| Forwarding rate |
11.9 Mpps |
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| Packet buffer memory |
1.5 MB |
| Design |
| Product colour |
Black |
| Housing material |
Plastic |
| LED indicators |
Activity, Link, Power |
| Wall mountable |
Y |
| Certification |
CE, FCC, RoHS |
| Power |
| Power source |
DC |
| Power supply included |
Y |
| Input current |
0.6 A |
| Input voltage |
5 V |
| Power consumption (max) |
3.92 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
13.299 BTU/h |
| Weight & dimensions |
| Width |
127.2 mm |
| Depth |
66.5 mm |
| Height |
24 mm |
| Packaging data |
| Quick start guide |
Y |
| Package type |
Box |
| Package width |
131 mm |
| Package depth |
90 mm |
| Package height |
84 mm |
