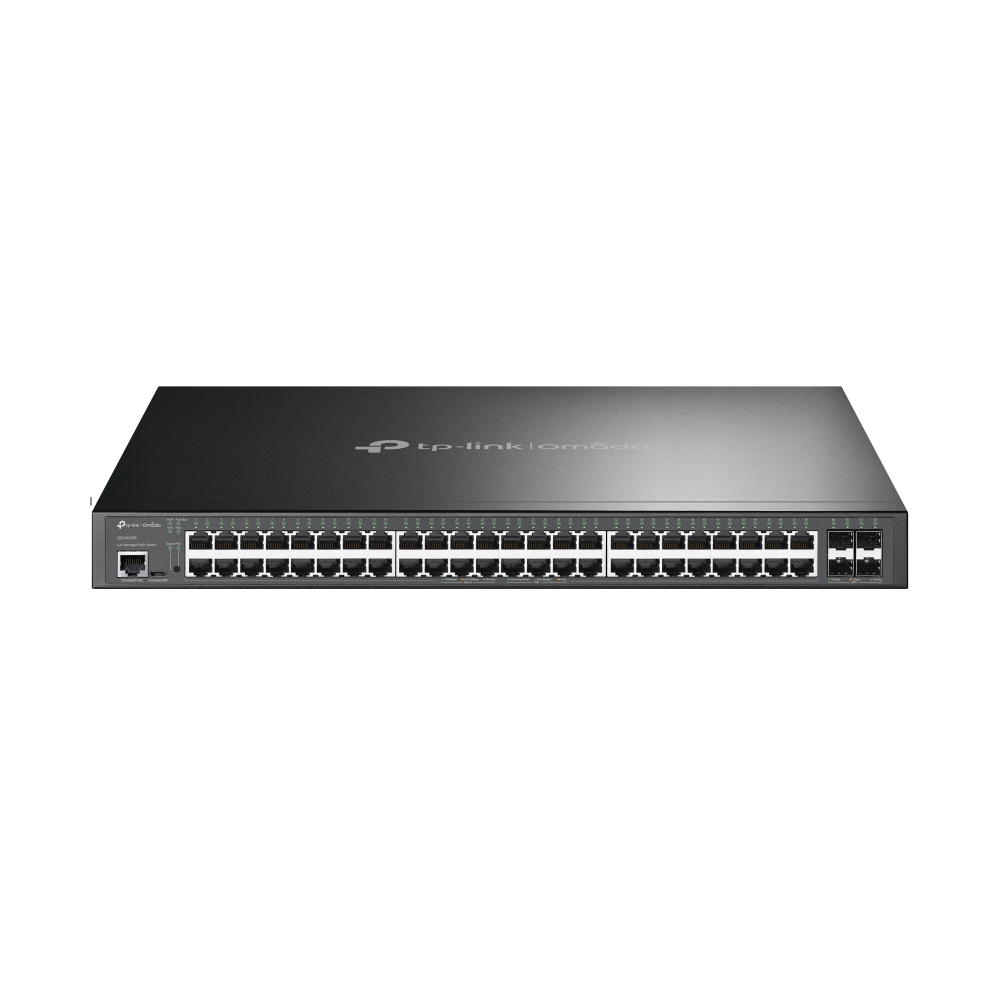

TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Management features |
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| Configuring Location Settings (CLI) |
Y |
| System event log |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
4 |
| Console port |
RJ-45/Micro-USB |
| Network |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support |
Y |
| Port mirroring |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| VLAN support |
Y |
| Data transmission |
| Switching capacity |
176 Gbit/s |
| Forwarding rate |
130.9 Mpps |
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
9216 |
| Security |
| DHCP features |
DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| MAC address filtering |
Y |
| Static port security |
Y |
| SSH/SSL support |
Y |
| BPDU filtering/protection |
Y |
| IP-MAC-Port binding |
Y |
| Authentication |
Auto VLAN, Guest VLAN |
| Multicast features |
| Multicast support |
Y |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Certification |
CE, FCC, RoHS |
| Performance |
| Internal memory |
512 MB |
| Flash memory |
32 MB |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
48 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
500 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
2169.2 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| Rack rails |
Y |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
