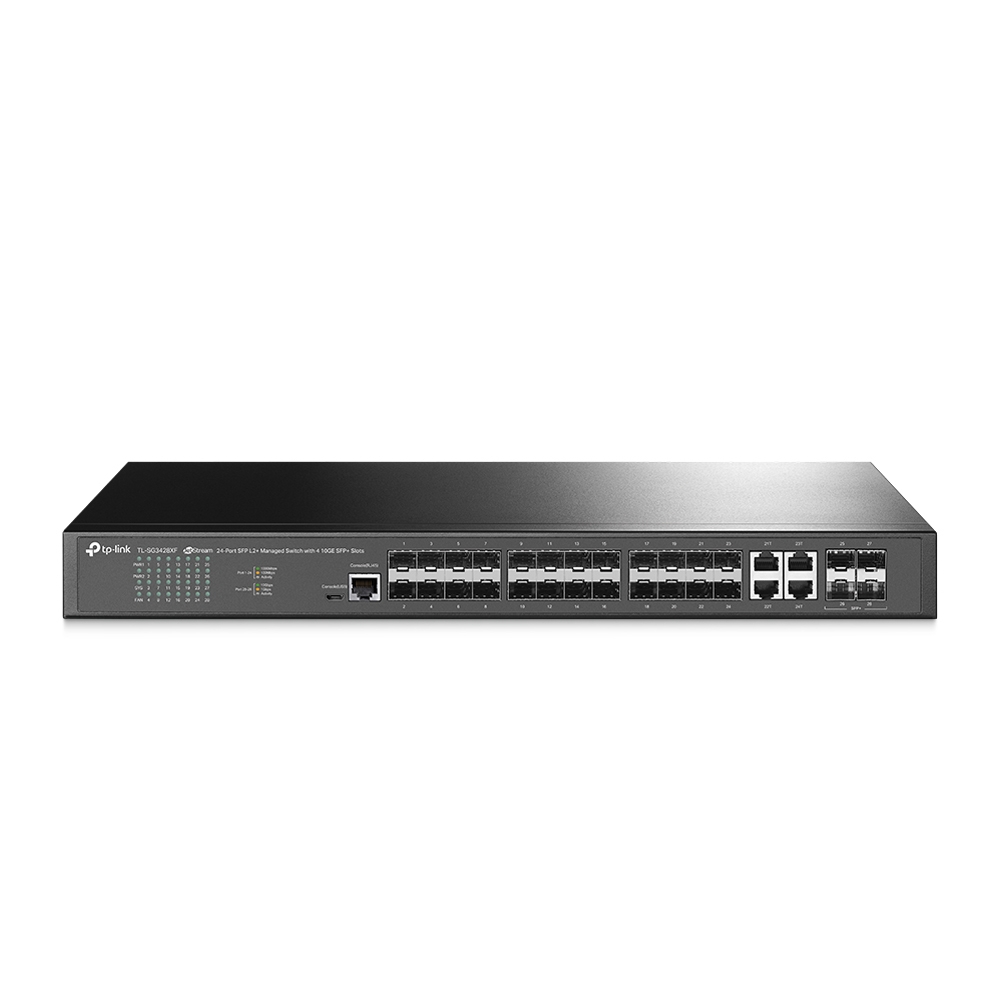

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: None, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
| Management features |
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| Configuring Location Settings (CLI) |
Y |
| System event log |
Y |
| MIB support |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
None |
| Combo SFP ports quantity |
4 |
| SFP+ module slots quantity |
4 |
| Fiber ports quantity |
20 |
| Fiber optic connector |
SFP, SFP+ |
| Console port |
RJ-45/Micro-USB |
| Power connector |
AC-in jack |
| Network |
| Networking standards |
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x |
| 10G support |
Y |
| Port mirroring |
Y |
| IP routing |
Y |
| Policy-based routing |
Y |
| Routing entries |
512 |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
| Active link detection |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Tagged VLAN |
| Data transmission |
| Switching capacity |
128 Gbit/s |
| Forwarding rate |
95.23 Mpps |
| MAC address table |
16000 entries |
| Static route |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
9 |
| Packet buffer memory |
12 MB |
| Security |
| DHCP features |
DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| IGMP proxy |
Y |
| MAC address filtering |
Y |
| SSH/SSL support |
Y |
| Loop protection |
Y |
| BPDU filtering/protection |
Y |
| IP-MAC-Port binding |
Y |
| Authentication |
Auto VLAN, MAC-based authentication |
| Password protection |
Y |
| Authentication type |
RADIUS, TACACS+ |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features |
| Multicast support |
Y |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Y |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| Redundant power supply (RPS) support |
Y |
| Number of power supply units |
2 |
| Power consumption (max) |
35.7 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
220 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| Manual |
Y |
| Rack mount kit |
Y |
| .N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.. |
