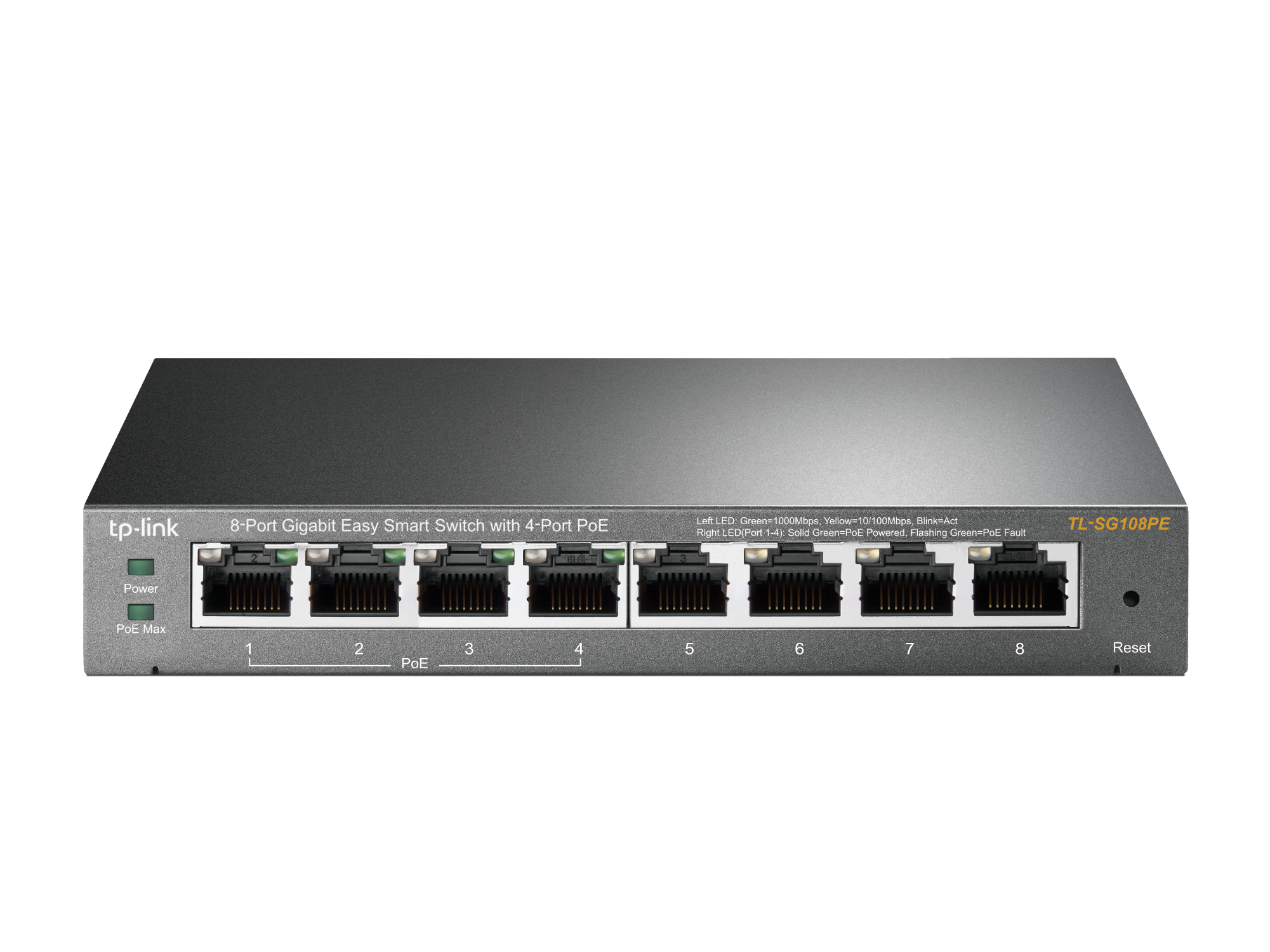

TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
| Networking standards |
IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Port mirroring |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| VLAN support |
Y |
| Number of VLANs |
32 |
| Data transmission |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
15000 |
| Packet forwarding rate (1 Gbps) |
11900000 pps |
| Packet buffer memory |
1.5 MB |
| Security |
| IGMP snooping |
Y |
| Loop protection |
Y |
| Design |
| Product colour |
Black |
| LED indicators |
Activity, Link, PoE, Power, Speed, Status |
| Certification |
FCC, CE, RoHS |
| Power |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
48 V |
| Input current |
1.25 A |
| Output voltage |
48 V |
| Output current |
1.25 A |
| Power consumption (max) |
65.2 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) voltage range |
220 - 220 V |
| Total Power over Ethernet (PoE) budget |
55 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
158 mm |
| Depth |
100.7 mm |
| Height |
25.4 mm |
| Packaging data |
| Cables included |
AC |
| User guide |
Y |
| Package type |
Box |
| Package width |
196 mm |
| Package depth |
131 mm |
| Package height |
121 mm |
