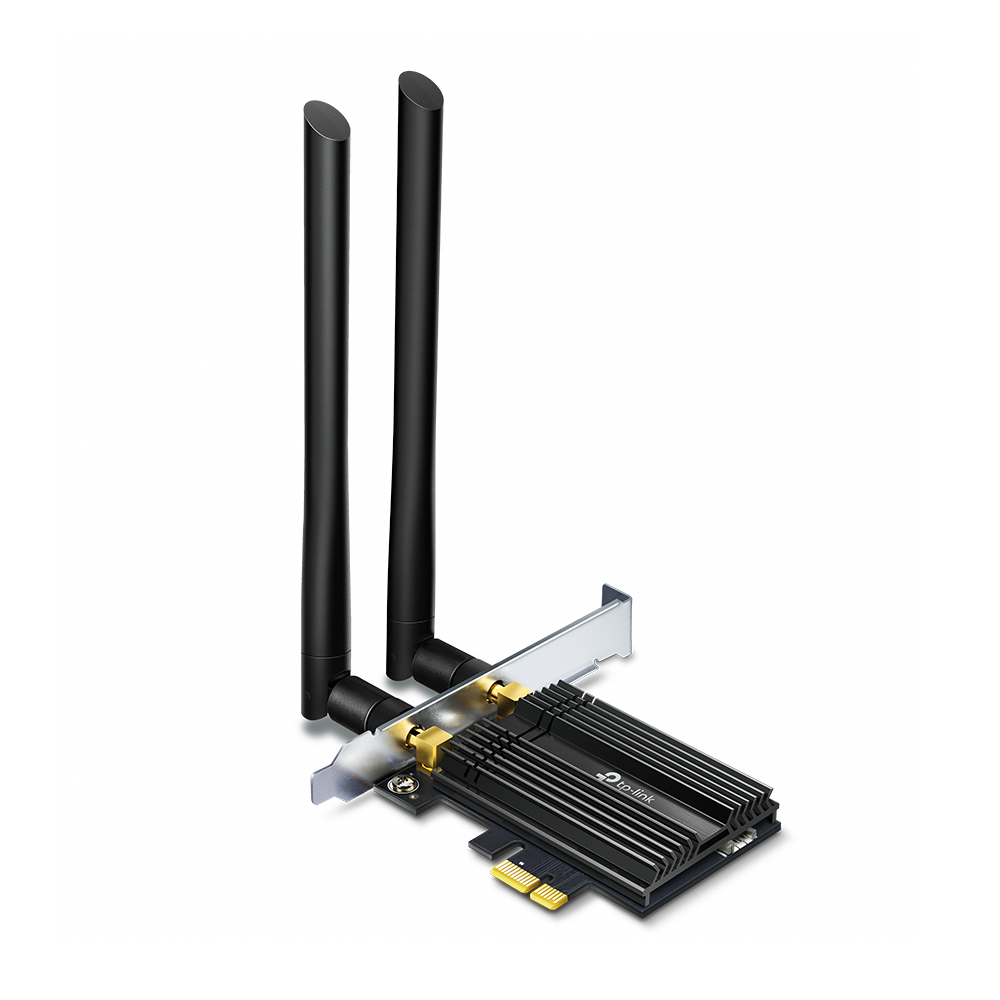

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Metallic
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
| Interface |
WLAN / Bluetooth |
| Network |
| Maximum data transfer rate |
2402 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi |
Y |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Frequency range |
2.4 - 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported |
54,300,574,1733,2402 Mbit/s |
| Modulation |
16-QAM, 64-QAM, 256-QAM, DBPSK, DQPSK, OFDM |
| Security algorithms |
64-bit AES, 128-bit AES, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth |
Y |
| Design |
| Product colour |
Black, Metallic |
| Internal |
Y |
| Antenna |
Y |
| Antenna design |
External |
| Certification |
CE, FCC |
| System requirements |
| Windows operating systems supported |
Windows 10 x64 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Sustainability |
| Sustainability certificates |
RoHS |
| Weight & dimensions |
| Width |
95.2 mm |
| Depth |
120.8 mm |
| Height |
21.5 mm |
| Packaging data |
| Package width |
200 mm |
| Package depth |
150 mm |
| Package height |
39 mm |
| Package weight |
270 g |
