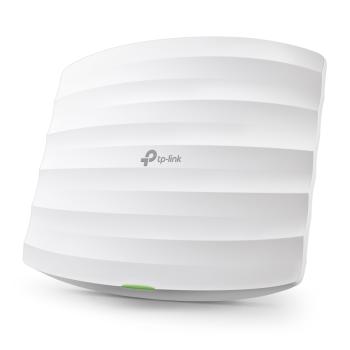

TP-Link AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point. Maximum data transfer rate: 1300 Mbit/s, Maximum data transfer rate (2.4 GHz): 450 Mbit/s, Maximum data transfer rate (5 GHz): 1300 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK. AC input voltage: 12 V, Input current: 1.5 A, Power consumption (typical): 12.3 W. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna features: Integrated antenna
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Maximum data transfer rate |
1300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
450 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1300 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
2.4, 5 GHz |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af |
| Automatic channel selection |
Y |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Virtual LAN features |
SSID-based VLAN assignment |
| Rate limiting |
Y |
| Wireless isolation |
Y |
| Airtime Fairness (ATF) |
Y |
| Quality of Service (QoS) support |
Y |
| Transmitting power |
27 dBmW |
| Security |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering |
Y |
| Number of SSID supported |
16 |
| Port-based Network Access Control (PNAC) |
Y |
| Access Control List (ACL) |
Y |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Y |
| Power |
| Power over Ethernet (PoE) |
Y |
| AC input voltage |
12 V |
| Input current |
1.5 A |
| Power consumption (typical) |
12.3 W |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| Reset button |
Y |
| LED indicators |
Power |
| Certification |
CE, FCC, RoHS |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antenna gain level (max) |
4 dBi |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
205.4 mm |
| Depth |
181.6 mm |
| Height |
38 mm |
| Packaging data |
| PoE adapter included |
Y |
| Mounting kit |
Y |
| Quick start guide |
Y |
| Package width |
340 mm |
| Package depth |
228 mm |
| Package height |
65 mm |
