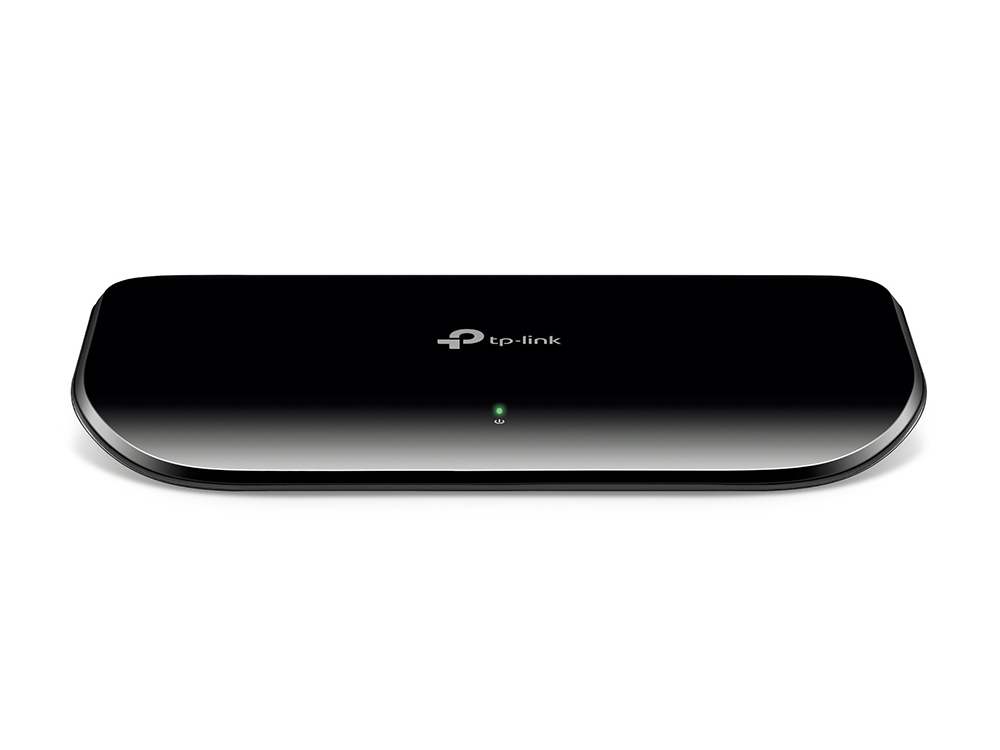

TP-Link 8-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. Power connector: DC-in jack. Wall mountable
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Full duplex |
Y |
| Flow control support |
Y |
| Rate limiting |
Y |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10,100,480,800,1000 Mbit/s |
| Auto-negotiation |
Y |
| Data transmission |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
15000 |
| Packet forwarding rate (1 Gbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (10 Mbps) |
1488000 pps |
| Security |
| MAC address filtering |
Y |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Wall mountable |
Y |
| Certification |
FCC, RoHs |
| Performance |
| Fanless |
Y |
| Power |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
4.6 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
15.8 BTU/h |
| Weight & dimensions |
| Width |
180 mm |
| Depth |
89.8 mm |
| Height |
25.5 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| Manual |
Y |
| Package type |
Box |
| Package width |
220 mm |
| Package depth |
123 mm |
| Package height |
97 mm |
| Package weight |
370 g |
