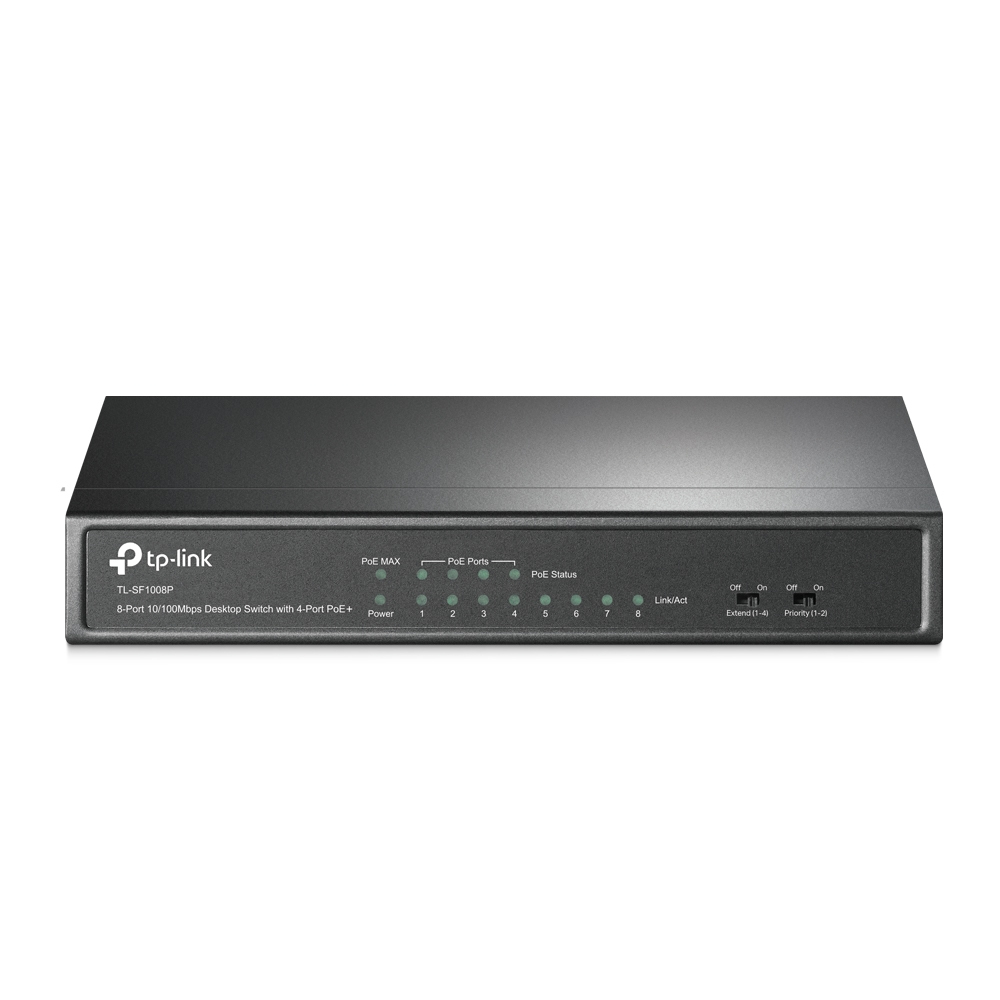

TP-LINK 8-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
| Networking standards |
IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Data transmission |
| Switching capacity |
1.6 Gbit/s |
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Design |
| Product colour |
Black |
| LED indicators |
Y |
| Certification |
FCC, CE, RoHS |
| Power |
| DC input voltage |
48 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
60.2 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
171 mm |
| Depth |
98 mm |
| Height |
27 mm |
| Packaging data |
| User guide |
Y |
| AC adapter included |
Y |
| Package type |
Box |
| Package width |
280 mm |
| Package depth |
223 mm |
| Package height |
68 mm |
| .N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.. |
