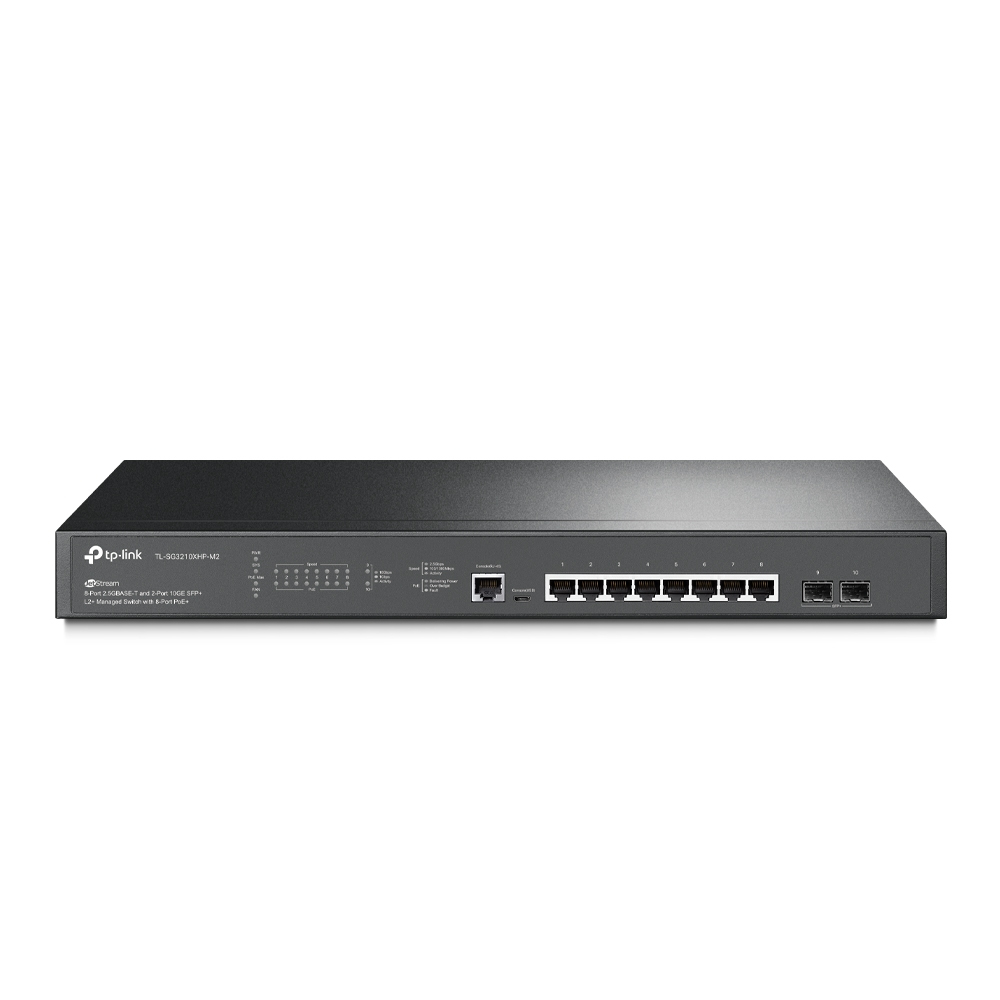

TP-Link JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Management features |
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| System event log |
Y |
| MIB support |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity |
8 |
| SFP+ module slots quantity |
2 |
| Console port |
RJ-45/micro-USB |
| Power connector |
AC-in jack |
| Network |
| Networking standards |
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support |
Y |
| Port mirroring |
Y |
| IP routing |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| VLAN support |
Y |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs |
4000 |
| Data transmission |
| Switching capacity |
80 Gbit/s |
| Forwarding rate |
59.52 Mpps |
| MAC address table |
16000 entries |
| Static route |
Y |
| Number of static routes |
48 |
| Number of IP interfaces |
16 |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Packet buffer memory |
12 MB |
| Security |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| MAC address filtering |
Y |
| Static port security |
Y |
| SSH/SSL support |
Y |
| Loop protection |
Y |
| BPDU filtering/protection |
Y |
| IP-MAC-Port binding |
Y |
| Authentication |
MAC-based authentication, Port-based authentication |
| Password protection |
Y |
| Multicast features |
| Multicast support |
Y |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Protocols |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) |
Y |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Certification |
CE, FCC, RoHS |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
291.49 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
240 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| Package type |
Box |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
