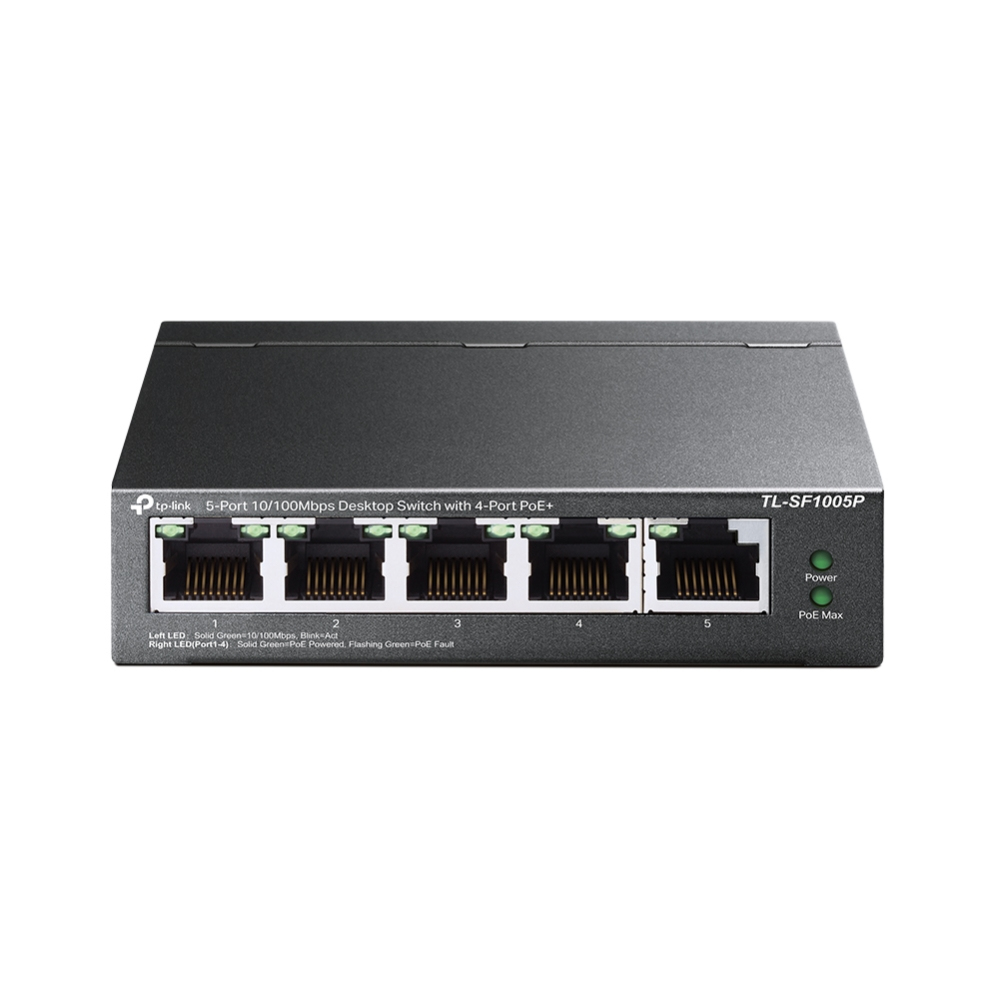

TP-LINK 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af,IEEE 802.3x. Power over Ethernet (PoE)
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
| Networking standards |
IEEE 802.3af,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Data transmission |
| Switching capacity |
1 Gbit/s |
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Design |
| Product colour |
Black |
| LED indicators |
Y |
| Certification |
FCC, CE, RoHS |
| Performance |
| Maximum cable length |
100 m |
| Power |
| Power supply included |
Y |
| Output voltage |
48 V |
| Output current |
1.25 A |
| Power consumption (max) |
63.51 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
58 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
5.73 BTU/h |
| Weight & dimensions |
| Width |
99.8 mm |
| Depth |
97.8 mm |
| Height |
25 mm |
| Packaging data |
| User guide |
Y |
| AC adapter included |
Y |
| Package type |
Box |
| Package width |
196 mm |
| Package depth |
131 mm |
| Package height |
121 mm |
