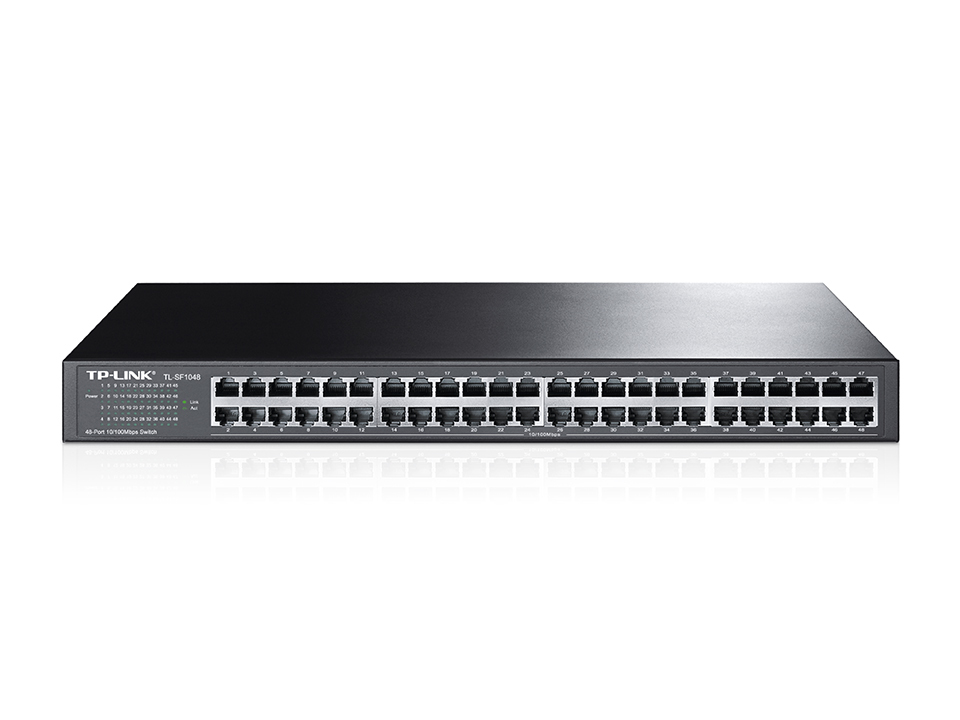

TP-Link 48-Port 10/100Mbps Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8000 entries, Switching capacity: 9.6 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto-negotiation |
Y |
| Data transmission |
| Supported data transfer rates |
10/100 Mbps |
| Switching capacity |
9.6 Gbit/s |
| Forwarding rate |
7.14 Mpps |
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Protocols |
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Grey |
| LED indicators |
Y |
| Certification |
FCC, CE, RoHS |
| Compatible products |
FCC, CE |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
9.9 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
32 - 104 °F |
| Heat dissipation |
33.78 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| Rack mount kit |
Y |
| Package width |
528 mm |
| Package depth |
250 mm |
| Package height |
80 mm |
| Package weight |
2.62 kg |
| Other features |
| Dimensions (WxDxH) |
440 x 260 x 44 mm |
| Bandwidth |
9.6 Gbit/s |
| Connectivity LEDs |
Y |
| Size (imperial) |
48.3 cm (19") |
| Dimensions (W x D x H) (imperial) |
439.4 x 259.1 x 43.2 mm (17.3 x 10.2 x 1.7") |
