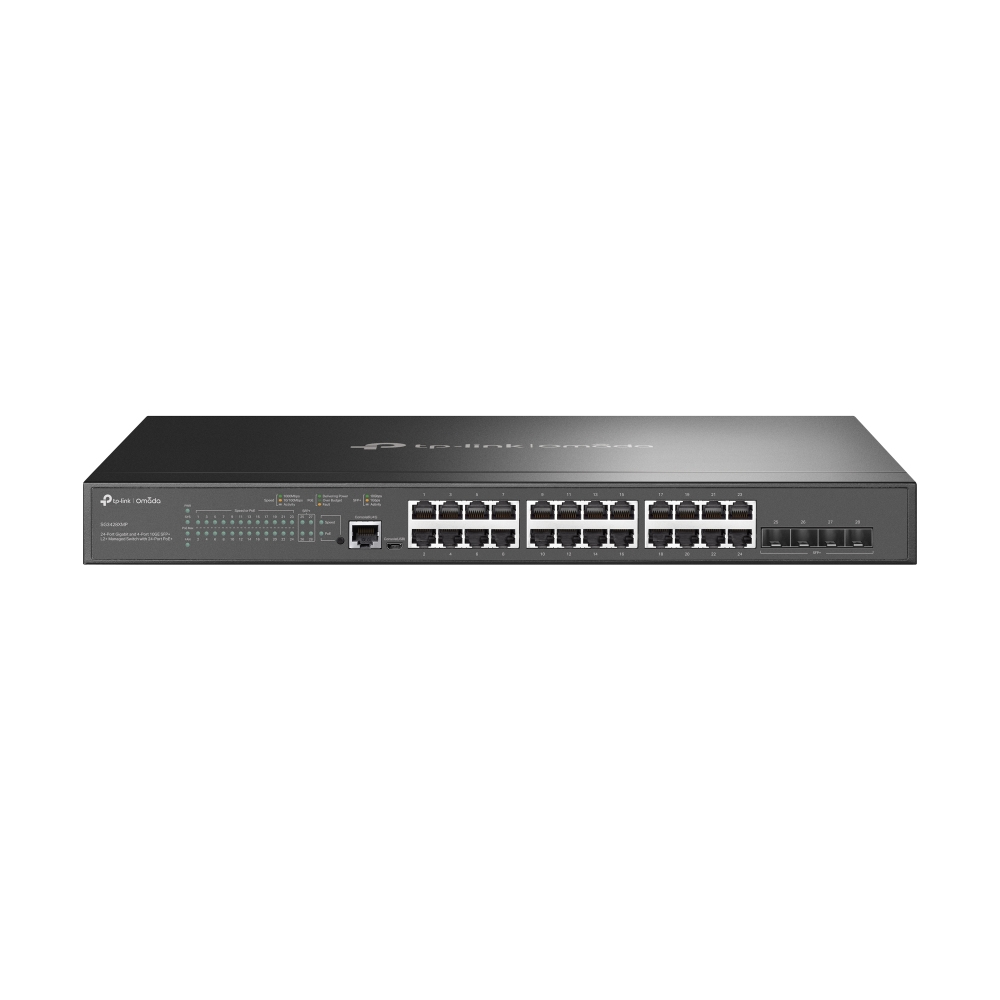

TP-LINK JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11d,IEEE 802.1s,IEEE 802.1w. Power over Ethernet (PoE). Rack mounting
| Management features |
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| Configuring Location Settings (CLI) |
Y |
| System event log |
Y |
| MIB support |
Yes |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
4 |
| Console port |
RJ-45/Micro-USB |
| Network |
| Networking standards |
IEEE 802.11d,IEEE 802.1s,IEEE 802.1w |
| 10G support |
N |
| Port mirroring |
Y |
| Policy-based routing |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Active link detection |
Y |
| VLAN support |
Y |
| Data transmission |
| Switching capacity |
128 Gbit/s |
| Forwarding rate |
95.23 Mpps |
| MAC address table |
16000 entries |
| Number of static routes |
48 |
| Jumbo frames support |
Y |
| Security |
| DHCP features |
DHCP snooping |
| IGMP snooping |
Y |
| IGMP proxy |
Y |
| Loop protection |
Y |
| Multicast features |
| Multicast support |
Y |
| Design |
| Rack mounting |
Y |
| Product colour |
Black |
| LED indicators |
Y |
| Number of fans |
2 fan(s) |
| Power |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Total Power over Ethernet (PoE) budget |
384 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
| .N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.. |
