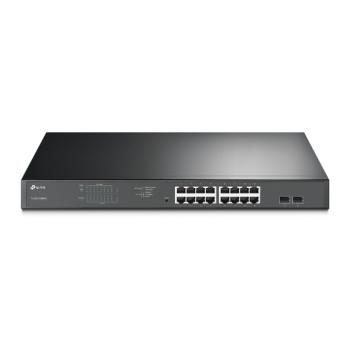

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Management features |
| Switch type |
Managed |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| SFP module slots quantity |
2 |
| Network |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Port-based VLAN |
| Number of VLANs |
32 |
| Optical fiber |
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
| Switching capacity |
36 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of queues |
4 |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Packet buffer memory |
4.1 MB |
| Security |
| IGMP snooping |
Y |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Certification |
CE, FCC, RoHS |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
217.22 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
192 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
741.15 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| User guide |
Y |
| Rack mount kit |
Y |
| Package width |
528 mm |
| Package depth |
250 mm |
| Package height |
80 mm |
| Package weight |
2.91 kg |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
