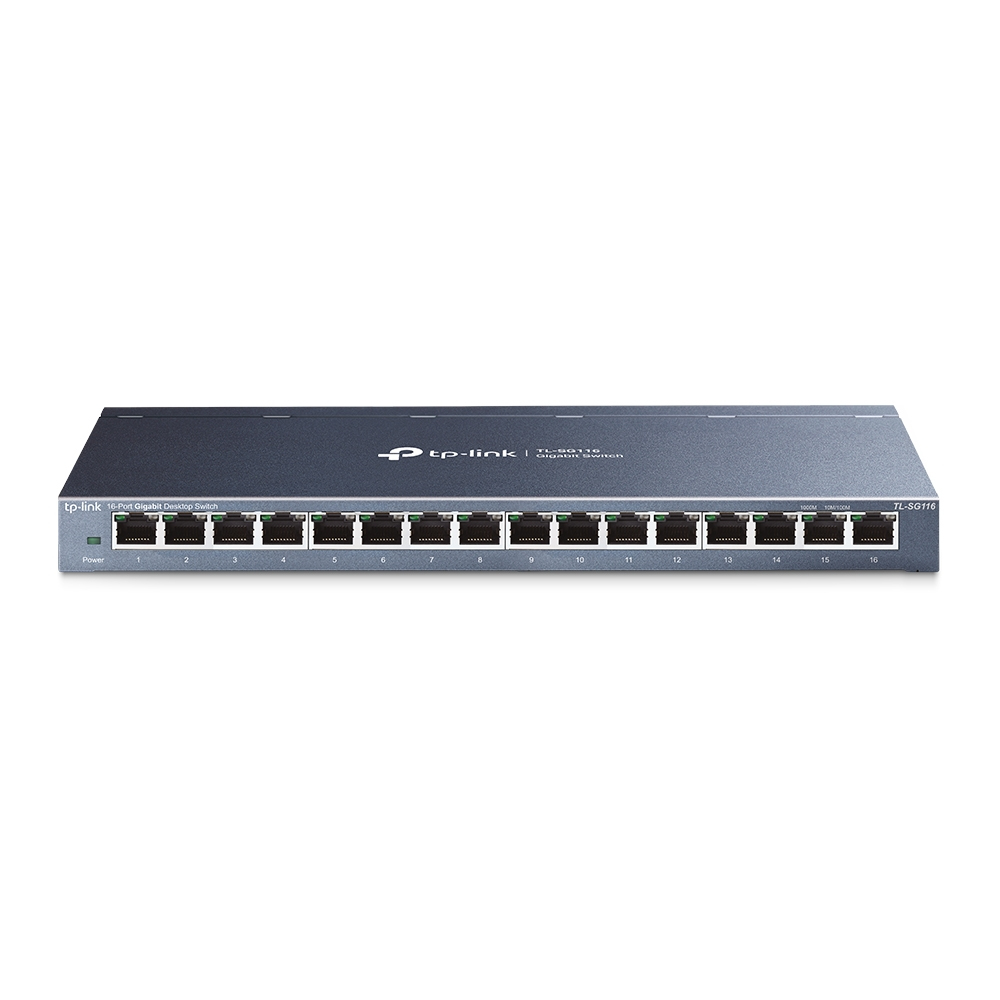

TP-LINK 16-Port Gigabit Desktop Network Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. DC input voltage: 12 V. Wall mountable
| Management features |
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Network |
| Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Data transmission |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| Packet buffer memory |
4.1 MB |
| Security |
| IGMP snooping |
Y |
| Multicast features |
| Multicast support |
Y |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Y |
| Wall mountable |
Y |
| Certification |
CE, FCC ,RoHS |
| Performance |
| Plug and Play |
Y |
| Power |
| Power supply included |
Y |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
12 V |
| Input current |
1 A |
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (max) |
10 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
286 mm |
| Depth |
111.7 mm |
| Height |
25.4 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| AC adapter included |
Y |
| Package type |
Box |
| Rubber feet |
Y |
| Package width |
412 mm |
| Package depth |
170 mm |
| Package height |
70 mm |
