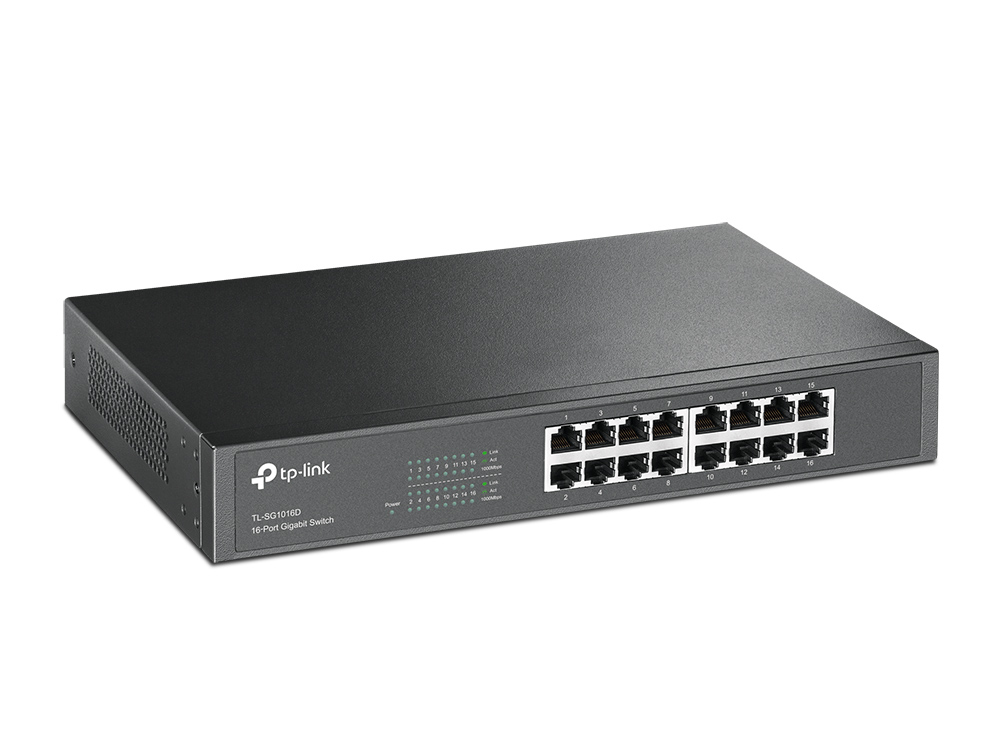

TP-LINK 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. Power connector: DC-in jack. Rack mounting
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-TX,1000BASE-T |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Data transmission |
| Supported data transfer rates |
10/100 Mbps |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
1 Gbit/s |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| Protocols |
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
| Rack mounting |
Y |
| Stackable |
Y |
| Product colour |
Black |
| LED indicators |
Y |
| Certification |
FCC, CE, RoHs |
| Power |
| Power source |
AC |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| Power consumption (max) |
9.26 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
32 - 104 °F |
| Heat dissipation |
31.6 BTU/h |
| Weight & dimensions |
| Width |
294 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| User guide |
Y |
| Package type |
Box |
| Package width |
400 mm |
| Package depth |
250 mm |
| Package height |
80 mm |
| Other features |
| Dimensions (WxDxH) |
294 x 180 x 44 mm |
| Connectivity technology |
Wired |
| Bandwidth |
32 Gbit/s |
| Power requirements |
100 - 240V, 50/60Hz |
| Networking features |
Gigabit Ethernet |
| Connectivity LEDs |
Y |
