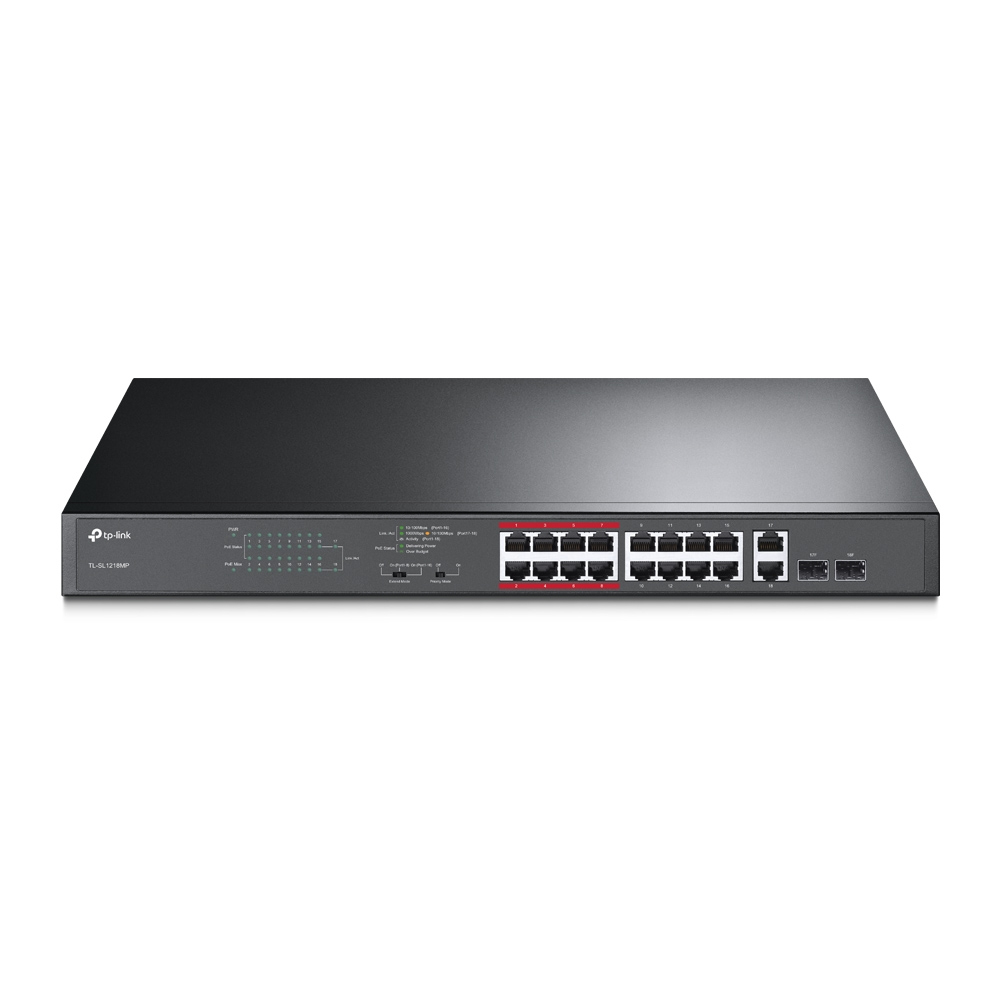

TP-Link TL-SL1218MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
18 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity |
16 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Combo SFP ports quantity |
2 |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Data transmission |
| Switching capacity |
7.2 Gbit/s |
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
10 |
| Packet forwarding rate (1 Gbps) |
5.36 pps |
| Packet buffer memory |
4.1 MB |
| Security |
| MAC address filtering |
Y |
| Design |
| Rack mounting |
Y |
| Stackable |
N |
| Product colour |
Black |
| LED indicators |
LAN, PoE, Status |
| Number of fans |
2 fan(s) |
| Power |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
18.7 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
192 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
741.15 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
| User guide |
Y |
| Manual |
Y |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
