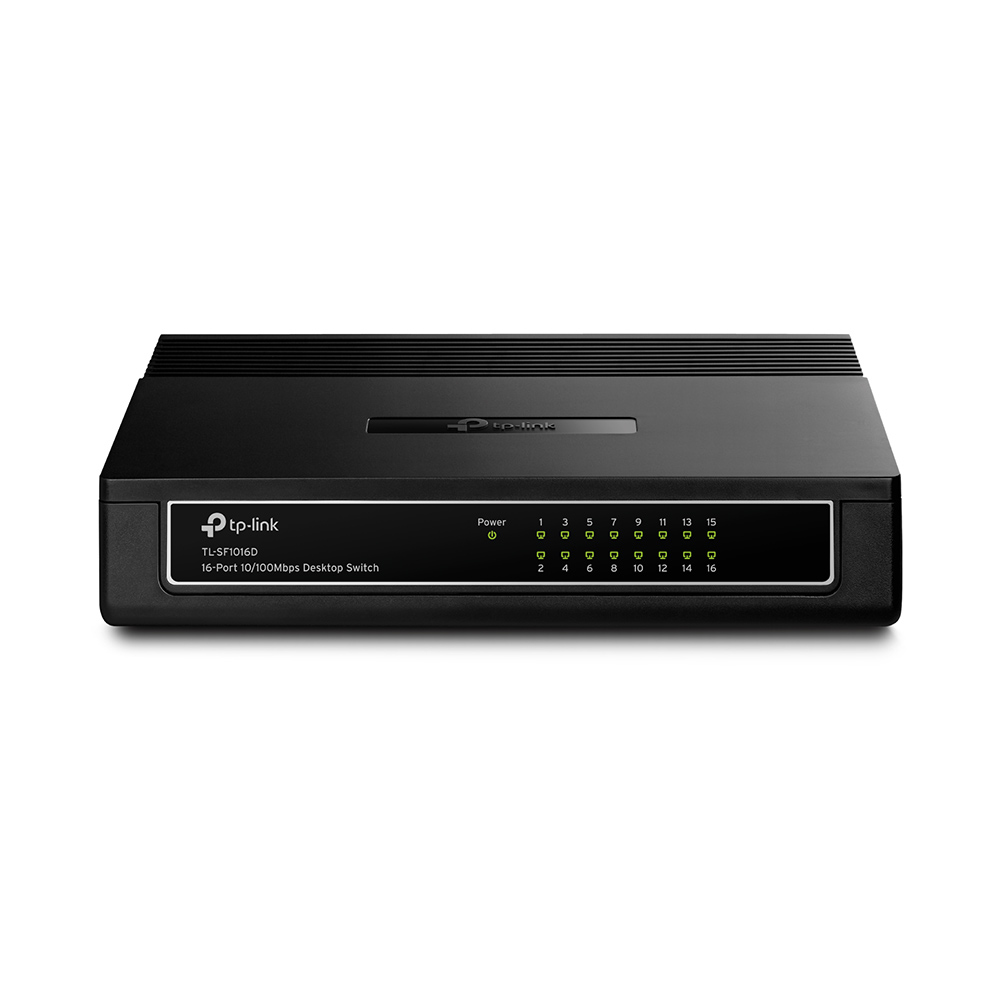

TP-LINK 16-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 2000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u,IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
100BASE-TX,10BASE-T |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Data transmission |
| Supported data transfer rates |
10/100 Mbps |
| Switching capacity |
3.2 Gbit/s |
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
0.1 Gbit/s |
| Protocols |
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
| Product colour |
White |
| Certification |
FCC, CE |
| Power |
| Power supply included |
Y |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
9 V |
| Input current |
0.6 A |
| Power consumption (max) |
3.23 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
7.03 BTU/h |
| Weight & dimensions |
| Width |
200.9 mm |
| Depth |
142.5 mm |
| Height |
41 mm |
| Packaging data |
| Package width |
285 mm |
| Package depth |
223 mm |
| Package height |
68 mm |
| Package weight |
570 g |
| Other features |
| Dimensions (WxDxH) |
200 x 142 x 40 mm |
| Connectivity technology |
Wired |
| Connectivity LEDs |
Y |
