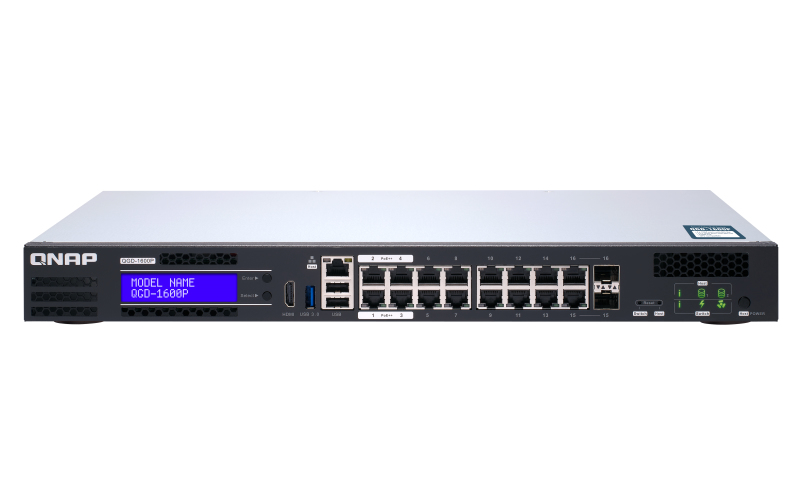

QNAP QGD-1600P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14, USB 2.0 ports quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE.... Power over Ethernet (PoE). Rack mounting
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Traffic classification |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
14 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| HDMI stacking ports |
1 |
| Network |
| Networking standards |
IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Rate limiting |
Y |
| Auto-negotiation |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Port-based VLAN |
| Optical fiber |
| Fiber ethernet cabling technology |
1000Base-X |
| Data transmission |
| Switching capacity |
32 Gbit/s |
| Throughput |
16000 Mpps |
| MAC address table |
8000 entries |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Security |
| DHCP features |
DHCP client,DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Security algorithms |
256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Loop protection |
Y |
| Design |
| Rack mounting |
Y |
| Product colour |
Black, Grey |
| Reset button |
Y |
| LED indicators |
Activity, Fan fail, Link, PoE, Speed |
| Number of fans |
2 fan(s) |
| Electromagnetic compatibility |
A, UL62368 |
| Certification |
CE, FCC, VCCI, BSMI RCM |
| Performance |
| Built-in processor |
Y |
| Processor model |
Intel Celeron J4115 |
| Processor frequency |
1800 MHz |
| Internal memory |
8192 MB |
| Flash memory |
4000 MB |
| Power |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
418 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Total Power over Ethernet (PoE) budget |
370 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
528 mm |
| Depth |
403 mm |
| Height |
160 mm |
| Weight |
4.41 kg |
| Packaging data |
| Cables included |
AC, LAN (RJ-45) |
| Quick start guide |
Y |
| Rack mount kit |
Y |
| Package weight |
5.56 kg |
