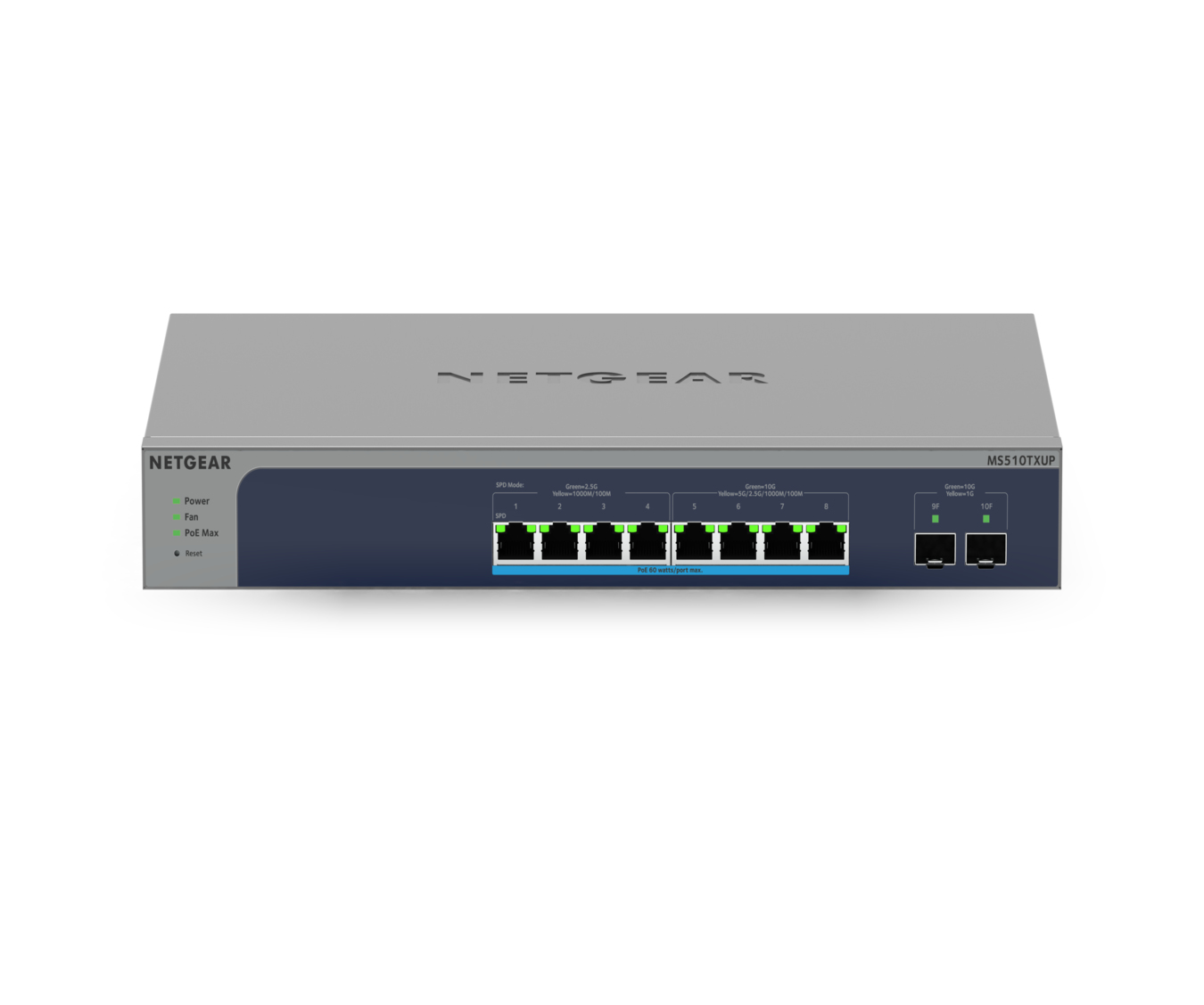

Netgear MS510TXUP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Full duplex. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
| Management features |
| Switch type |
Managed |
| Switch layer |
L2/L3/L4 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Installed SFP+ modules quantity |
2 |
| Network |
| Networking standards |
IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
| 10G support |
Y |
| Copper ethernet cabling technology |
1000BASE-T |
| Port mirroring |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Spanning tree protocol |
Y |
| Ethernet LAN data rates |
100,1000,2500,5000,10000 Mbit/s |
| VLAN support |
Y |
| Number of VLANs |
256 |
| Data transmission |
| Switching capacity |
140 Gbit/s |
| MAC address table |
32000 entries |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| Security |
| DHCP features |
DHCP client,DHCP server |
| Access Control List (ACL) |
Y |
| Access Control List (ACL) ingress |
100 |
| IGMP snooping |
Y |
| Security algorithms |
HTTPS,SSL/TLS |
| Loop protection |
Y |
| Multicast features |
| Multicast support |
Y |
| Protocols |
| Management protocols |
SNMP v1/v2c,SNMP v3 |
| Design |
| Rack mounting |
Y |
| Product colour |
Grey, Blue |
| LED indicators |
Activity, Power, Speed |
| Performance |
| Built-in processor |
Y |
| Processor frequency |
1000 MHz |
| Internal memory |
256 MB |
| Flash memory |
64 MB |
| Power |
| Power supply included |
Y |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
60 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Weight & dimensions |
| Width |
330 mm |
| Depth |
206 mm |
| Height |
43 mm |
