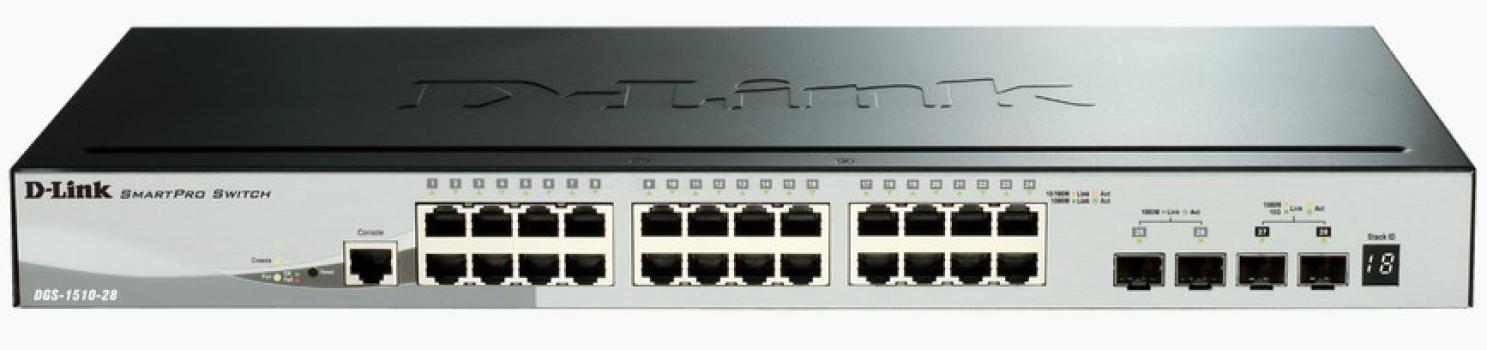

D-Link DGS-1510. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
| Management features |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Y |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
4 |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support |
Y |
| Full duplex |
Y |
| Auto MDI/MDI-X |
Y |
| Data transmission |
| Switching capacity |
92 Gbit/s |
| Throughput |
68.45 Mpps |
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
| Number of static routes |
512 |
| Jumbo frames support |
Y |
| Packet buffer memory |
1.5 MB |
| Security |
| Access Control List (ACL) |
Y |
| MAC address filtering |
Y |
| Static port security |
Y |
| SSH/SSL support |
Y |
| Design |
| Rack mounting |
Y |
| Stackable |
Y |
| Product colour |
Black |
| LED indicators |
Y |
| Safety |
cUL, CB |
| Certification |
CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Performance |
| Noise level |
47.5 dB |
| Technical details |
| Shipping (inner) case height |
38.3 cm |
| Shipping (inner) case width |
29.6 cm |
| Shipping (inner) case length |
52.9 cm |
| Shipping (inner) case net weight |
7.49 kg |
| Products per shipping (inner) case |
3 pc(s) |
| Pallet gross weight (air) |
471.4 kg |
| Master (outer) cases per pallet (air) |
40 pc(s) |
| Products per pallet (air) |
120 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
2.05 m |
| Pallet gross weight (sea) |
471.4 kg |
| Master (outer) cases per pallet (sea) |
40 pc(s) |
| Products per pallet (sea) |
120 pc(s) |
| Pallet height (sea) |
2.05 m |
| Shipping (inner) case gross weight |
11.3 kg |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
24 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Heat dissipation |
72.292 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
210 mm |
| Height |
44 mm |
| Weight |
2 kg |
| Packaging data |
| Package width |
348 mm |
| Package depth |
511 mm |
| Package height |
91 mm |
| Package weight |
3.47 kg |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
