ASUS TUF GAMING B660M-PLUS D4 90MB1940-M0EAY0

0000104768 TUF GAMING B660M-PLUS D4
Click image for Gallery

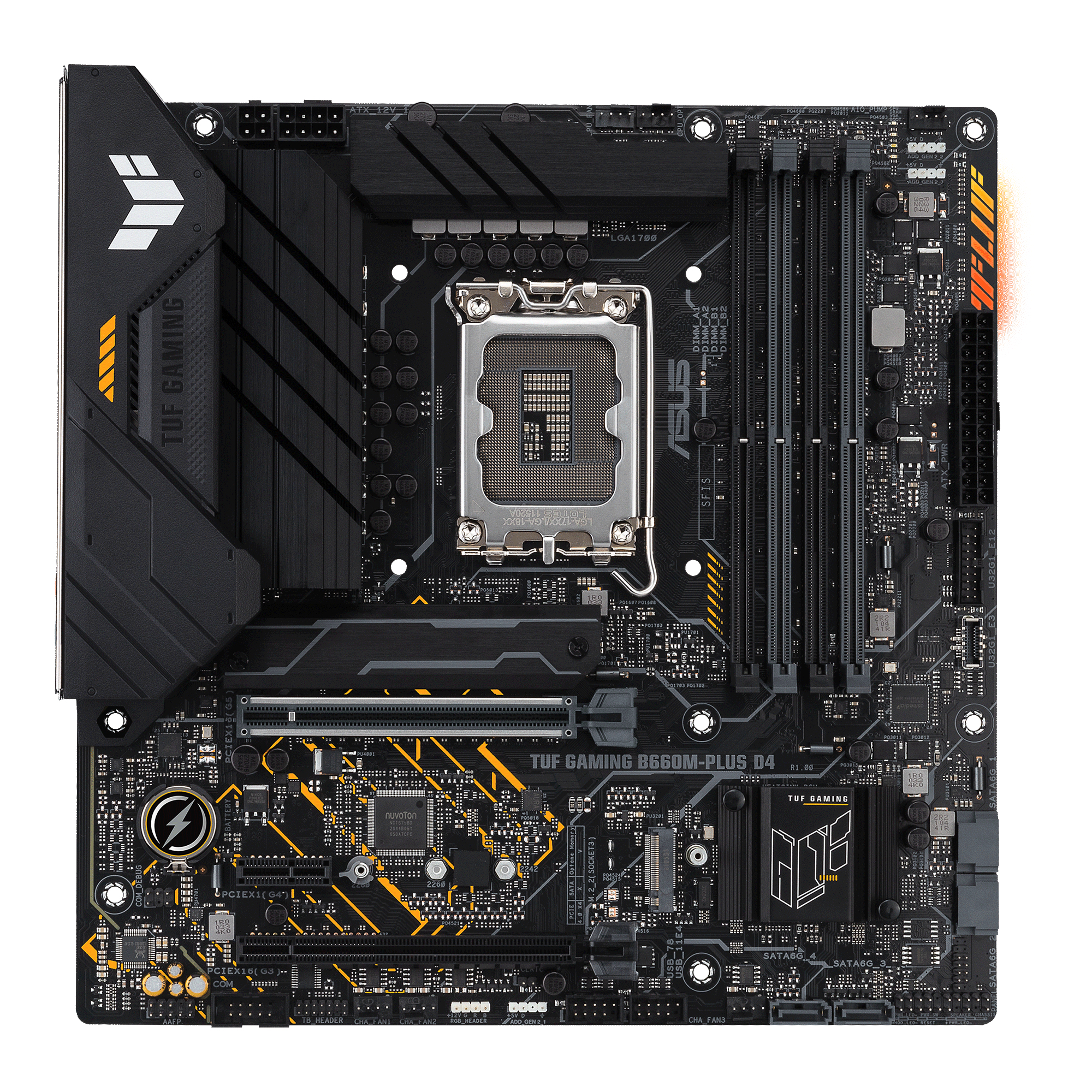

    ASUS TUF GAMING B660M- PLUS D4 Intel B660 LGA 1700 micro ATX

  • Brand : ASUS Mpn: 90MB1940-M0EAY0
  • Code : 0000104768 ean: 4711081516897
  • Availablity : Unavailable .Vedi Articoli Simili.
  • Shipping cost : € 12,66 (10,38 .+ iva.)
  • € 197,01 € 208,74 -6%
  • € 161,48 + VAT
  • Secure payments with Carta di Credito
    Secure payments via Stripe
  • Secure payments with Carta di Credito
    Secure payments via Stripe
  • Payment Method
+
-
Unavailable Read ok
ASUS TUF GAMING B660M- PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets LGA 1700
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Maximum internal memory 128 GB
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Y
RAID levels 0,1,5,10
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 3
Chassis intrusion connector Y
EPS power connector (8-pin) Y
Serial port headers 1
Thunderbolt headers 1
12V power connector Y
RGB LED pin header Y
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 5
Digital audio optical out 1
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi N
Features
Motherboard chipset Intel B660
Audio output channels 7.1 channels
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Power source type ATX
Expansion slots
PCI Express x1 slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 2
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Clear CMOS jumper Y
Weight & dimensions
Width 244 mm
Depth 244 mm
Packaging content
Cables included SATA
.N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita..
