ASUS PRIME B365M-K 90MB10M0-M0EAY0

0000123165 PRIME B365M-K
Click image for Gallery

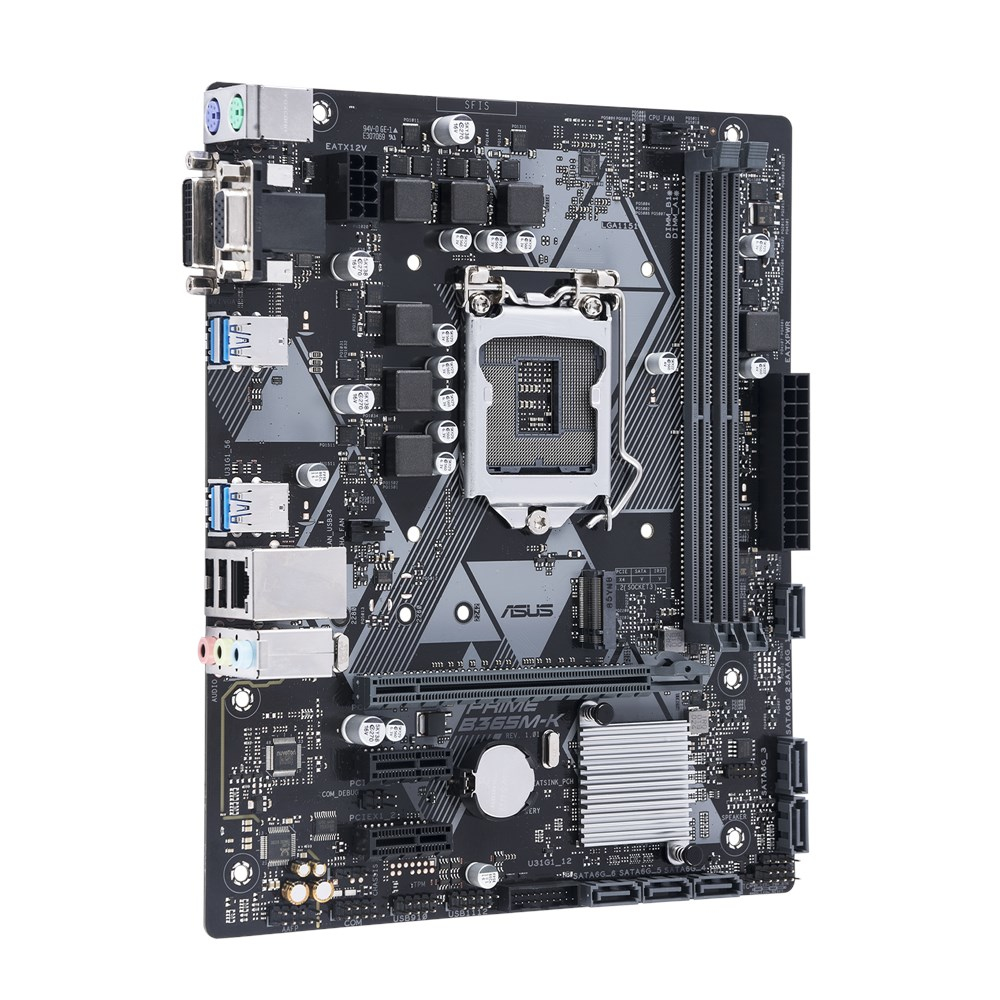

    ASUS Prime B365M-K Intel B365 LGA 1151 (Socket H4) micro ATX

  • Brand : ASUS Mpn: 90MB10M0-M0EAY0
  • Code : 0000123165 ean: 4718017240949
  • Availablity : Unavailable .Vedi Articoli Simili.
  • Shipping cost : € 12,66 (10,38 .+ iva.)
  • € 106,01 € 111,64 -5%
  • € 86,89 + VAT
  • Secure payments with Carta di Credito
    Secure payments via Stripe
  • Secure payments with Carta di Credito
    Secure payments via Stripe
  • Payment Method
+
-
Unavailable Read ok
ASUS Prime B365M-K. Processor manufacturer: Intel, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1024 MB, Maximum resolution: 1920 x 1200 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Processor
Processor manufacturer Intel
Processor socket LGA 1151 (Socket H4)
Compatible processor series Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel Pentium G
Maximum number of SMP processors 1
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 2133,2400,2666 MHz
Maximum internal memory 32 GB
Unbuffered memory Y
Storage controllers
RAID levels 0, 1, 5, 10
Graphics
Maximum graphics card memory 1024 MB
Maximum resolution 1920 x 1200 pixels
Internal I/O
USB 2.0 connectors 2
Number of SATA III connectors 6
S/PDIF out connector Y
Audio connector Y
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
Number of EATX power connectors 1
CPU fan connector Y
Number of chassis fan connectors 1
Number of COM connectors 1
12V power connector Y
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 2
VGA (D-Sub) ports quantity 1
DVI-D ports quantity 1
Network
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Wake-on-LAN ready Y
Features
Motherboard chipset Intel B365
Audio chip Realtek ALC887
Audio output channels 7.1 channels
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Windows operating systems supported Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Harmonized System (HS) code 84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 6.1
Clear CMOS jumper Y
Plug and Play Y
System Management BIOS (SMBIOS) version 3.1
Processor special features
Intel Extreme Memory Profile (XMP) Y
Weight & dimensions
Width 226 mm
Depth 185 mm
Packaging content
Cables included SATA
Manual Y
Drivers included Y
.N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita..
